Deda Yellow River Bridge

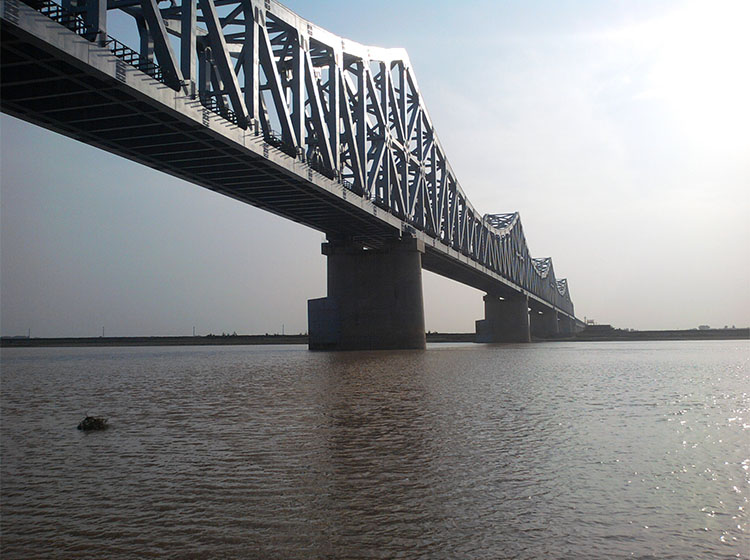

Deda Railway Yellow River Bridge,at present, it is one of the bridges with relatively novel design in China, with a total length of 8.09274 kilometers and 214 piers. The main bridge structure is a downward - bearing " N" continuous steel truss beam, which is soaring like a " swallow", with a maximum span of 180 meters. It is the railway steel structure bridge with the largest span and longest length in the Yellow River basin.

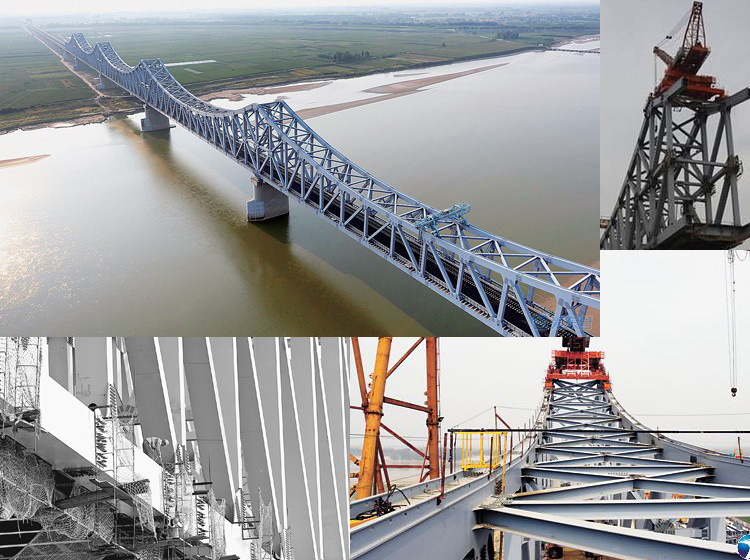

The main bridge is a ( 120 + 4× 180 + 120 ) meter down-bearing variable-height continuous steel truss beam, the approach bridge across the dike is a 1 - 106 meter simply supported composite arch, the approach bridge inside the dike is a 16 - 56 meter prestressed concrete simply supported box girder, and the approach bridges outside the dike are 24 meter and 32 meter prestressed concrete simply supported T - beams.

With a maximum span of 180 meters, it is the railway steel structure bridge with the largest span and longest length in the Yellow River basin.
