TC Shear Wrench

Electric Shear Wrench

Electric Shear Wrench

    • Light weight,non-impacting shear wrench
    • Model:SG-22
    • Applicate for:M16,M20,M22
    • 5/8",3/4",7/8"
    • For:Tension Control Bolt
    • Power consumption:1200W
    • Max Torque:733N.m
    • 540ft.lbs
    • Ro speed r/min:16
    • Voltage:220V,110V
    • Weight:4.4kg



SG-22

    • Light weight,non-impacting shear wrench

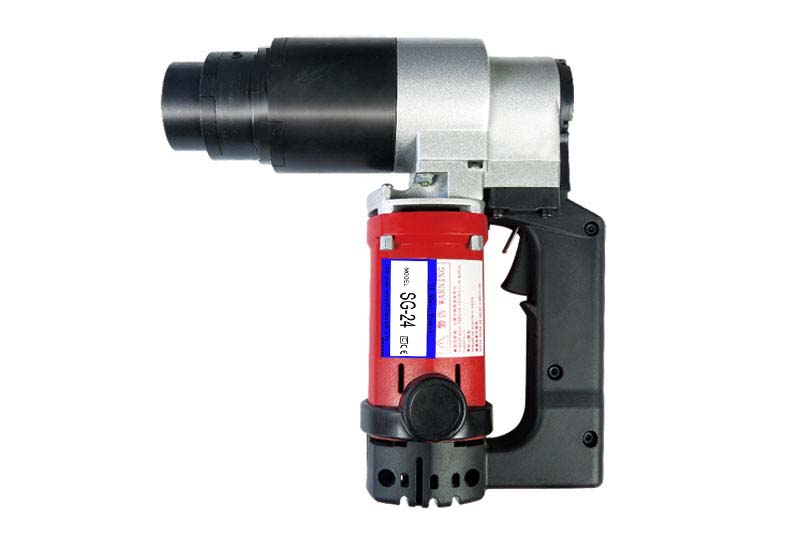

    • Model:SG-24
    • Applicate for:M20,M22,M24
    •                     3/4",7/8",1"
    • For:Tension Control Bolt
    • Power consumption:1350W
    • Max torque:1180N.m
    •                     870ft.lbs
    • Ro speed r/min:15
    • Voltage:220V,110V
    • Weight:6kg


SG-24

    • Light weight,non-impacting shear wrench

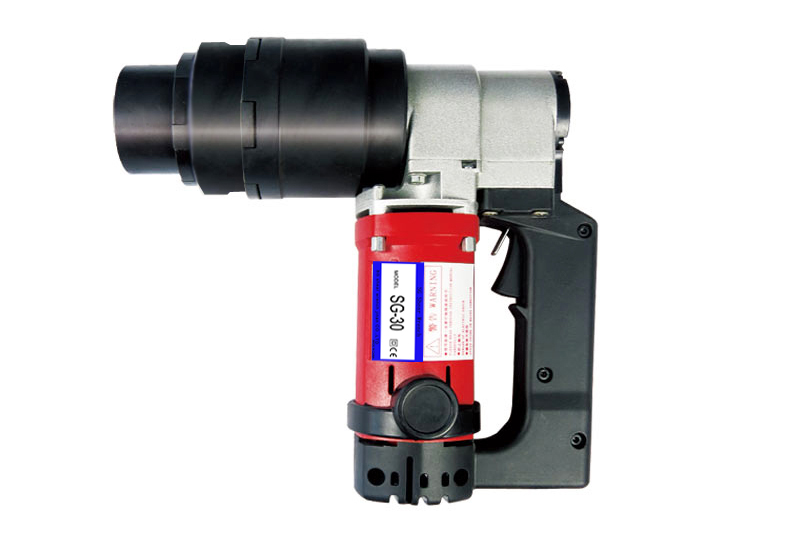

    • Model:SG-30
    • Applicate for:M27,M30
    • 1-1/8",1-1/4"
    • For:Tension Control Bolt
    • Power consumption:1350W
    • Max torque:2200N.m
    • 1621ft.lbs
    • Ro speed r/min:15
    • Voltage:220V,110V
    • Weight:7.7kg
SG-30

Shear Wrench are used for Tension Control Bolt,or called TC bolt,or Twist-off bolts,saved money and time,as it is quick,which only takes seconds to finish one bolt,and do not need to calibrate the bolt or the tool.Because the spline of TC bolt will be sheared off once it reached proper tension. TC shear wrench are no air compressor,no tool calibration,low maintenance,light weight,electricity.

Electric Shear Wrench C Series

Electric Shear Wrench C Series

    • non-impacting shear wrench

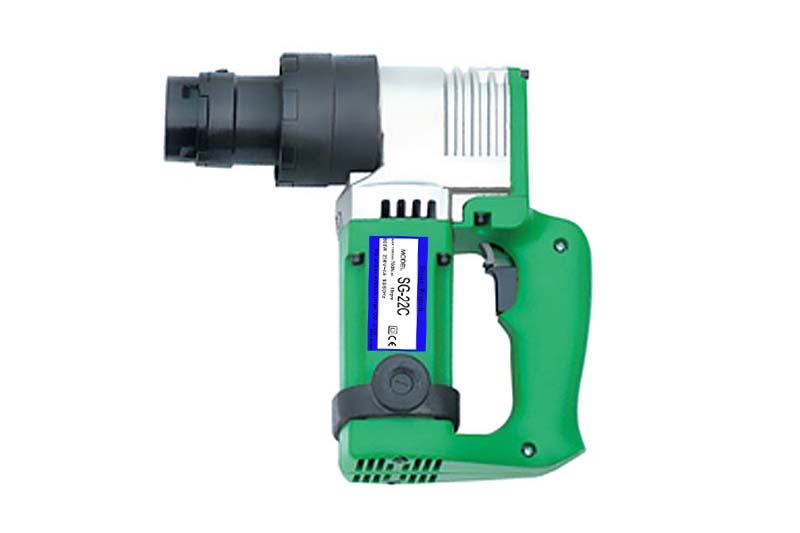

    • Model:SG-22C
    • Applicate for:M20,M22
    •                       3/4",7/8"
    • For:Tension Control Bolt
    • Power consumption:1000W
    • Max torque:733N.m
    •                        540ft.lbs
    • Ro speed r/min:17
    • Voltage:220V,110V
    • Weight:4.9kg
SG-22C

    • non-impacting shear wrench

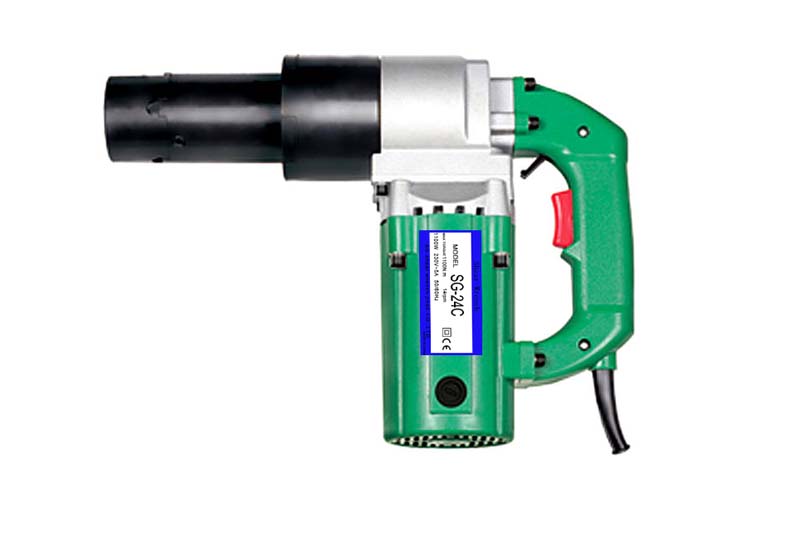

    • Model:SG-24C
    • Applicate for:M20,M22,M24
    •                        3/4",7/8",1"
    • For:Tension Control Bolt
    • Power consumption:1250W
    • Max torque:1180N.m
    •                       870ft.lbs
    • Ro speed r/min:15
    • Voltage:220V,110V
    • Weight:8.8kg
SG-24C

    • non-impacting shear wrench

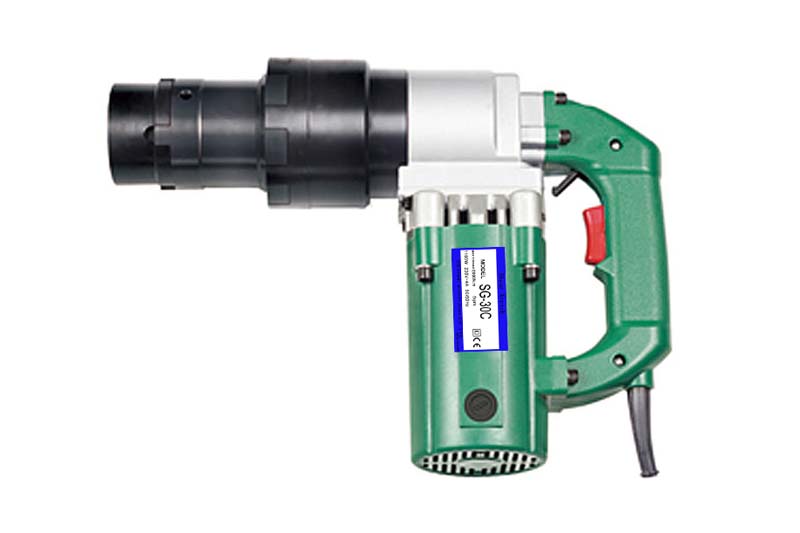

    • Model:SG-30C
    • Applicate for:M27,M30
    •                       1-1/8",1-1/4"
    • For:Tension Control Bolt
    • Power consumption:1250W
    • Max torque:2100N.m
    •                        1548ft.lbs
    • Ro speed r/min:5.5
    • Voltage:220V,110V
    • Weight:11kg
SG-30C

TC shear wrench C series shear wrench is Classic type,stable working.

Pre-Fasten Shear Wrench

Pre-Fasten Shear Wrench

    • non-impacting shear wrench

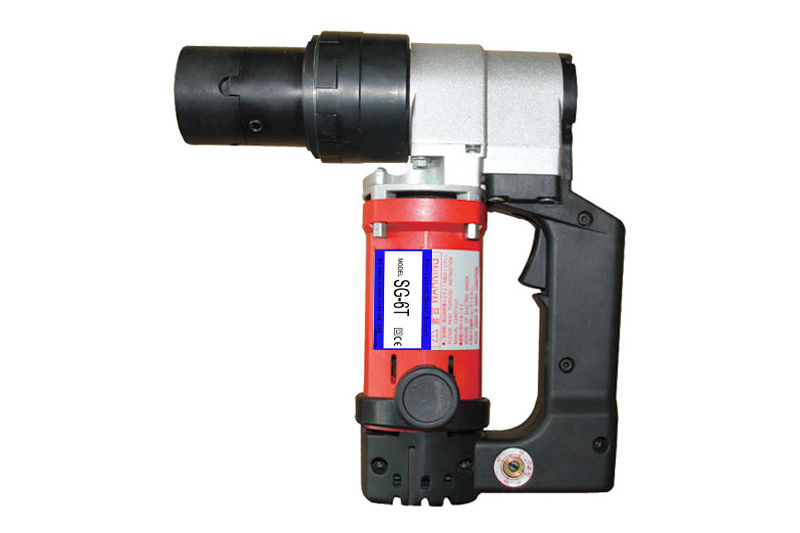

    • Model:SG-6T
    • Applicate for:M20,M22,M24
    • 3/4",7/8",1"
    • For:Tension Control Bolt
    • Power consumption:1200W
    • Torque range:300-600N.m
    • 221-443ft.lbs
    • Ro speed r/min:16
    • Voltage:220V,110V
    • Weight:5.6kg
SG-6T

    • non-impacting shear wrench

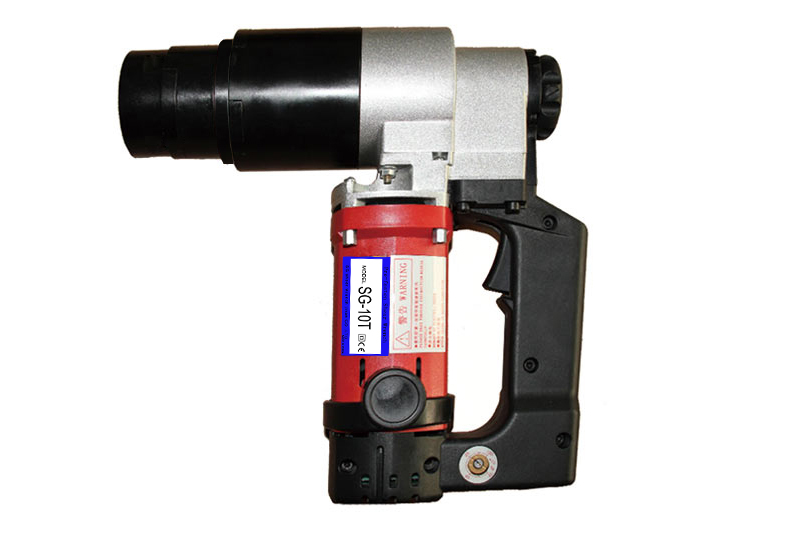

    • Model:SG-10T
    • Applicate for:M27,M30
    • 1-1/8",1-1/4"
    • For:Tension Control Bolt
    • Power consumption:1350W
    • Torque range:600-1000N.m
    • 443-738ft.lbs
    • Ro speed r/min:6.5
    • Voltage:220V,110V
    • Weight:6.5kg
SG-10T

Pre-fasten TC shear wrench is used for tension control bolt Pre-fasten.Pre-fasten should be 60%-80% of request tension,should not less than 30% of request tension.

Manual Shear Wrench

Manual Shear Wrench

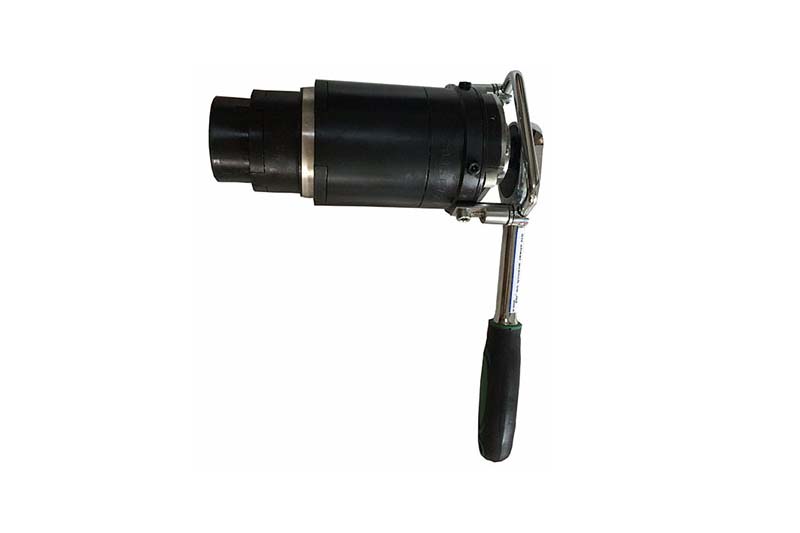

    • Manual shear wrench
    • Model:SG-24M
    • Applicate for:M20,M22,M24
    • 3/4",7/8",1"
    • For:Tension Control Bolt
    • Max torque:1100N.m
    • 812ft.lbs
    • Weight:2.4kg
SG-24M

    • manual shear wrench
    • Model:SG-27M
    • Applicate for:M24,M27
    •                       1",1-1/8"
    • For:Tension Control Bolt
    • Max torque:1600N.m
    •                       1181ft.lbs
    • Weight:4kg
SG-27M

Manual Shear Wrench is sued for Tension Control bolt,no electricity,manual type Corner shear wrench.
