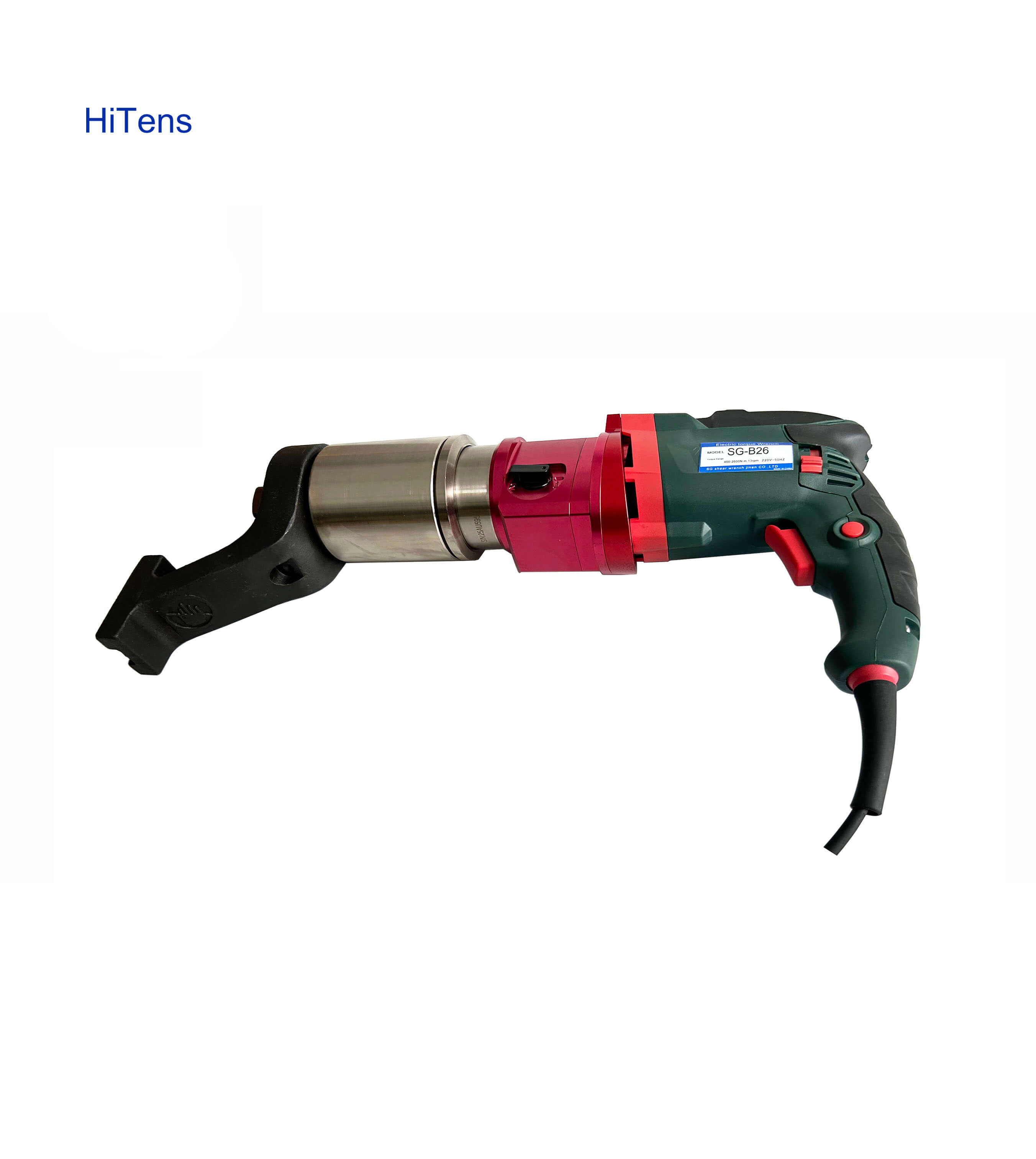

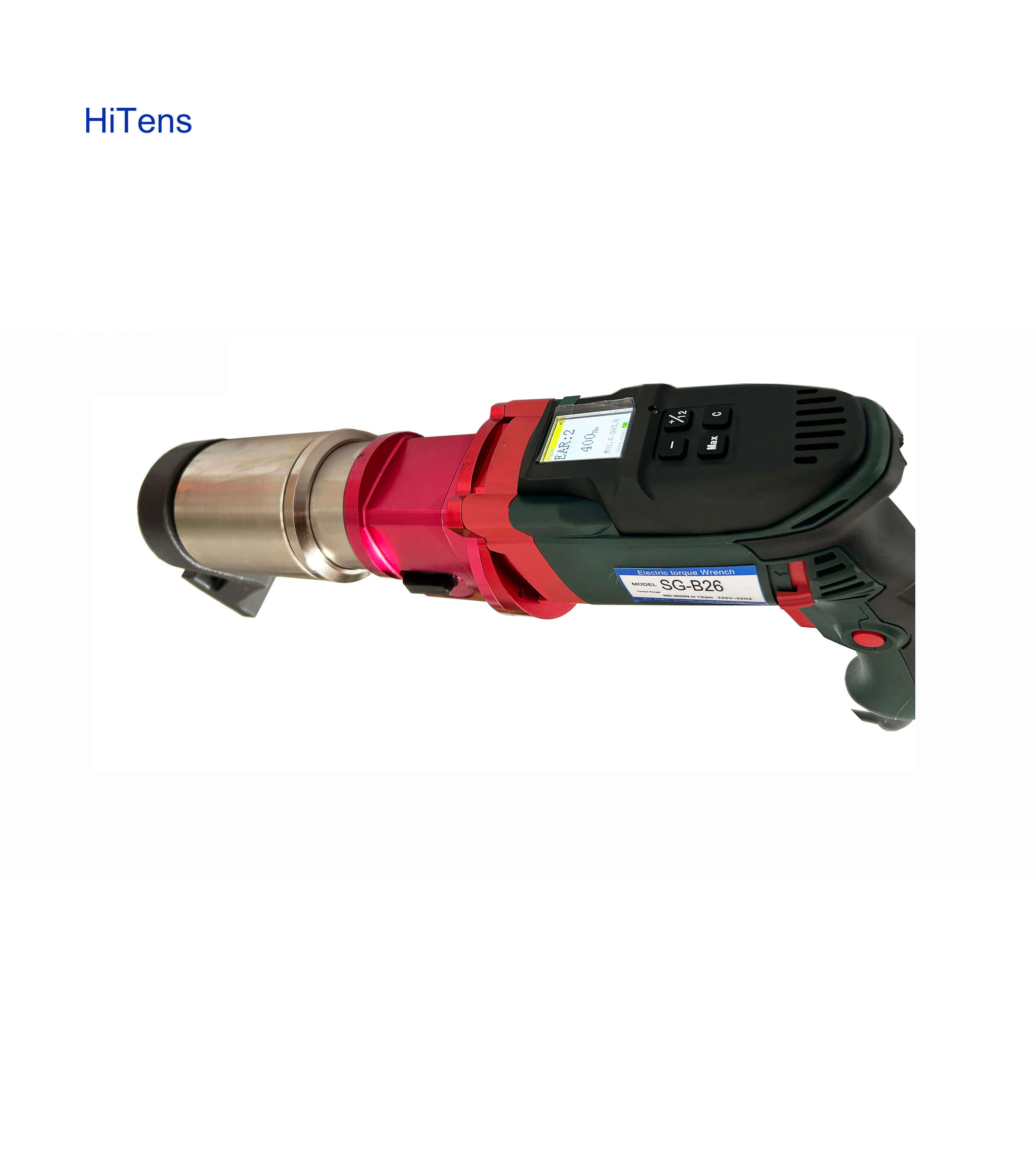

SG-B26 Straight electric torque control wrench
Want to talk to a
specialist now?
specialist now?
+86-15550020331
Business Hours: 8am - 6pm Est
Description
| No | Item | Data |
| 1 | Power | Electricity |
| 2 | For | Hexagon bolt |
| 3 | Power consumption W | 1300 |
| 4 | Torque range | 400-2600N.m 195-1917.76ft.lbs |
| 5 | Ro speed r/min | 11 |
| 6 | Applicate for | M22,M24,M27,M30,M33 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″ |

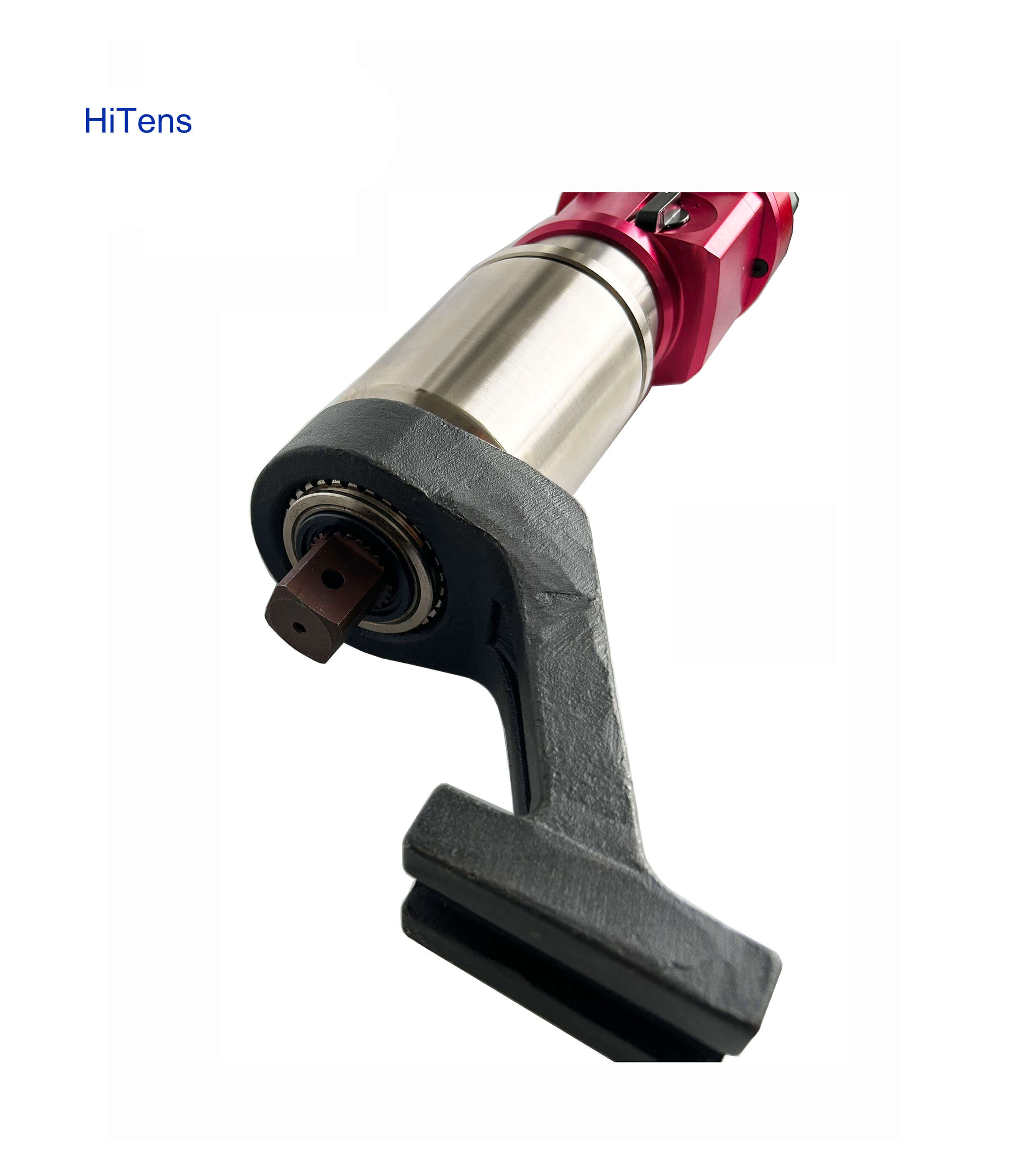

| 7 | Square drive | 1“ |
| 8 | Type | Non-impact |

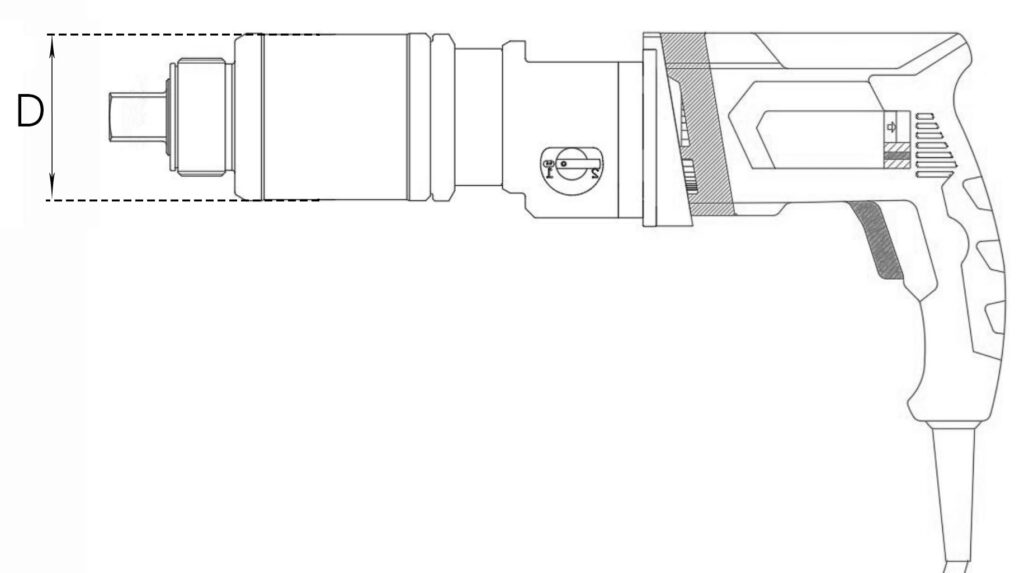

| 9 | Outer Diameter (D) mm | 88 |
| 10 | Weight kg | 8.5 |
Features

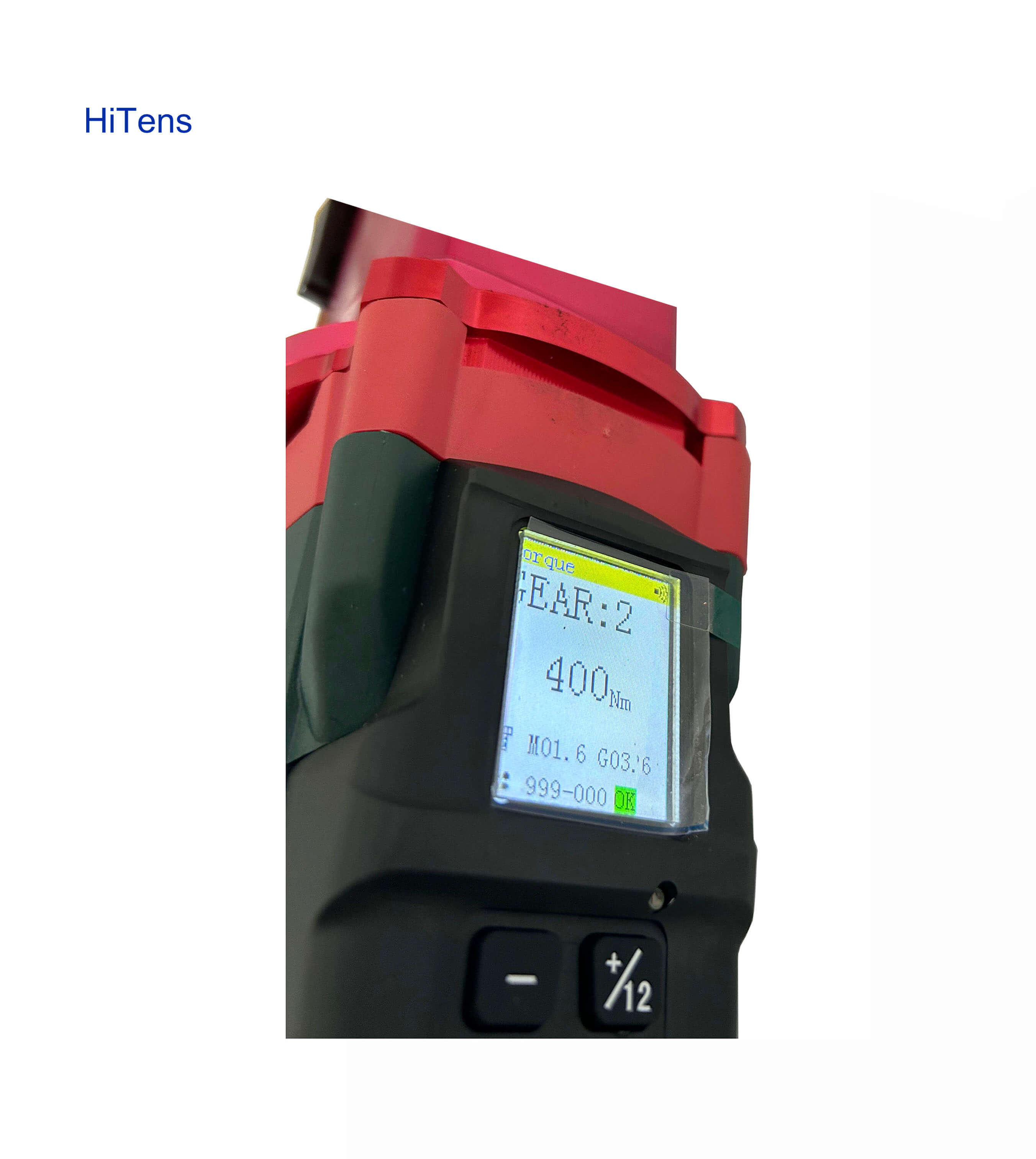

*Torque show directly
*Torque controlled, automatically stop after reached setted torque
*for 8.8 10.9 12.9s hexagon bolt fasten
*Press button to set torque
*Non impact
*Torque angel mode
*Passwords as option

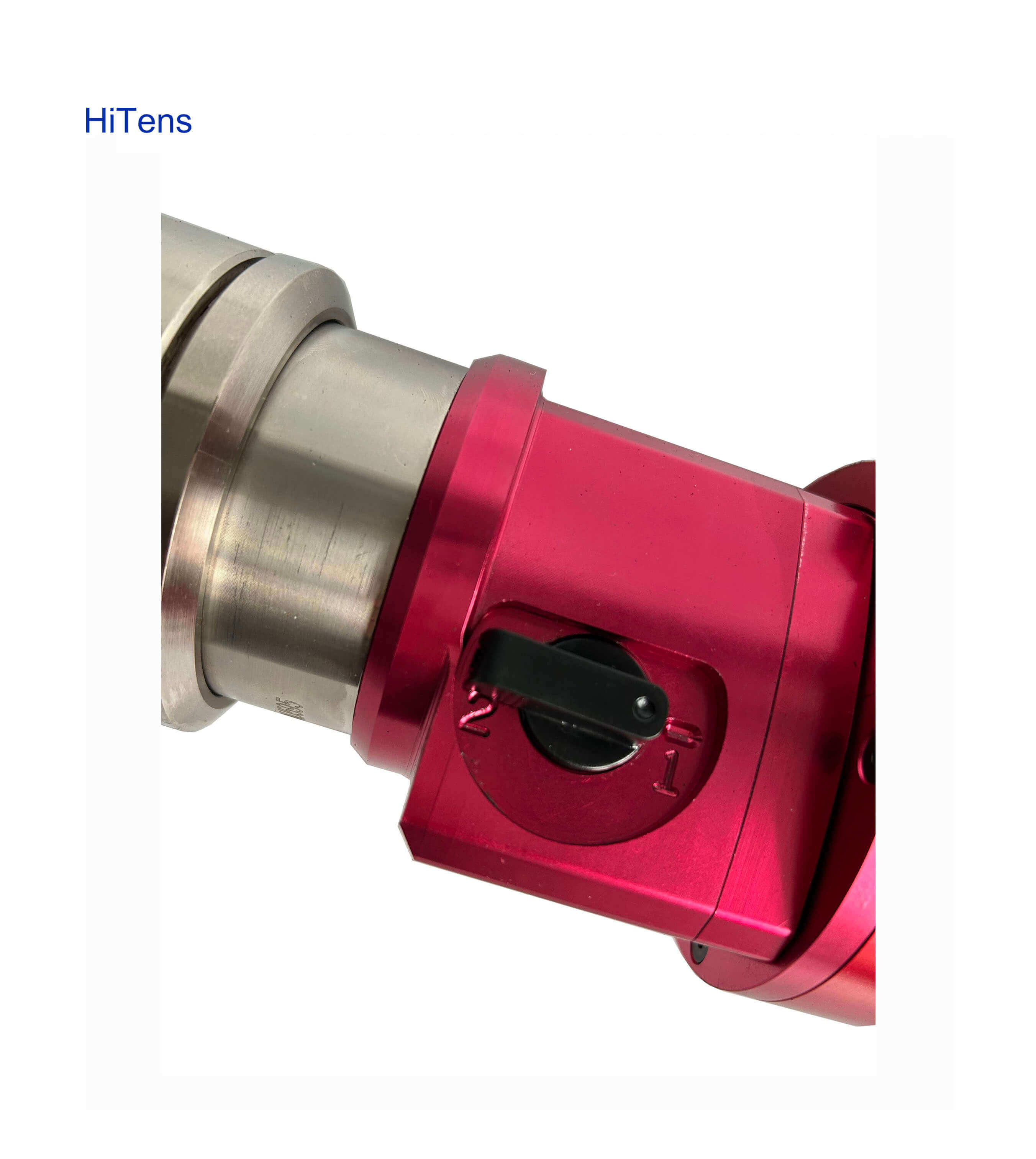

*2 Speed
What’s else of this type? Overview
| Model | Torque Range | Square drive | Power consumption W | Ro Speed r/min | Outer Diameter(D) mm | weight kg |
| SG-B05 | 80-450N.m 59-332ft.lbs | 3/4″ | 1300 | 21 | 88 | 5.3 |
| SG-B08 | 100-800N.m 74-590ft.lbs | 3/4″ | 1300 | 25 | 88 | 6.5 |
| SG-B12 | 150-1200N.m 111-885ft.lbs | 1″ | 1300 | 20 | 88 | 6.6 |
| SG-B15 | 200-1500N.m 148-1106ft.lbs | 1″ | 1300 | 18 | 88 | 6.7 |
| SG-B26 | 400-2600N.m 295-1918ft.lbs | 1″ | 1300 | 13 | 88 | 8.5 |
| SG-B42 | 500-4200N.m 369-3098ft.lbs | 1-1/2″ | 1300 | 11 | 88 | 8.9 |
| SG-B50 | 600-5000N.m 443-3688ft.lbs | 1-1/2″ | 1300 | 9 | 88 | 9.1 |
| SG-B65 | 1000-6500N.m 738-4794ft.lbs | 1-1/2″ | 1300 | 5.5 | 129 | 15.5 |
| SG-B80 | 1200-8000N.m 885-5901ft.lbs | 1-1/2″ | 1300 | 3.5 | 129 | 16.1 |
| SG-B100 | 2000-12000N.m 1475-8851ft.lbs | 1-1/2″ | 1300 | 1.6 | 129 | 17.9 |
