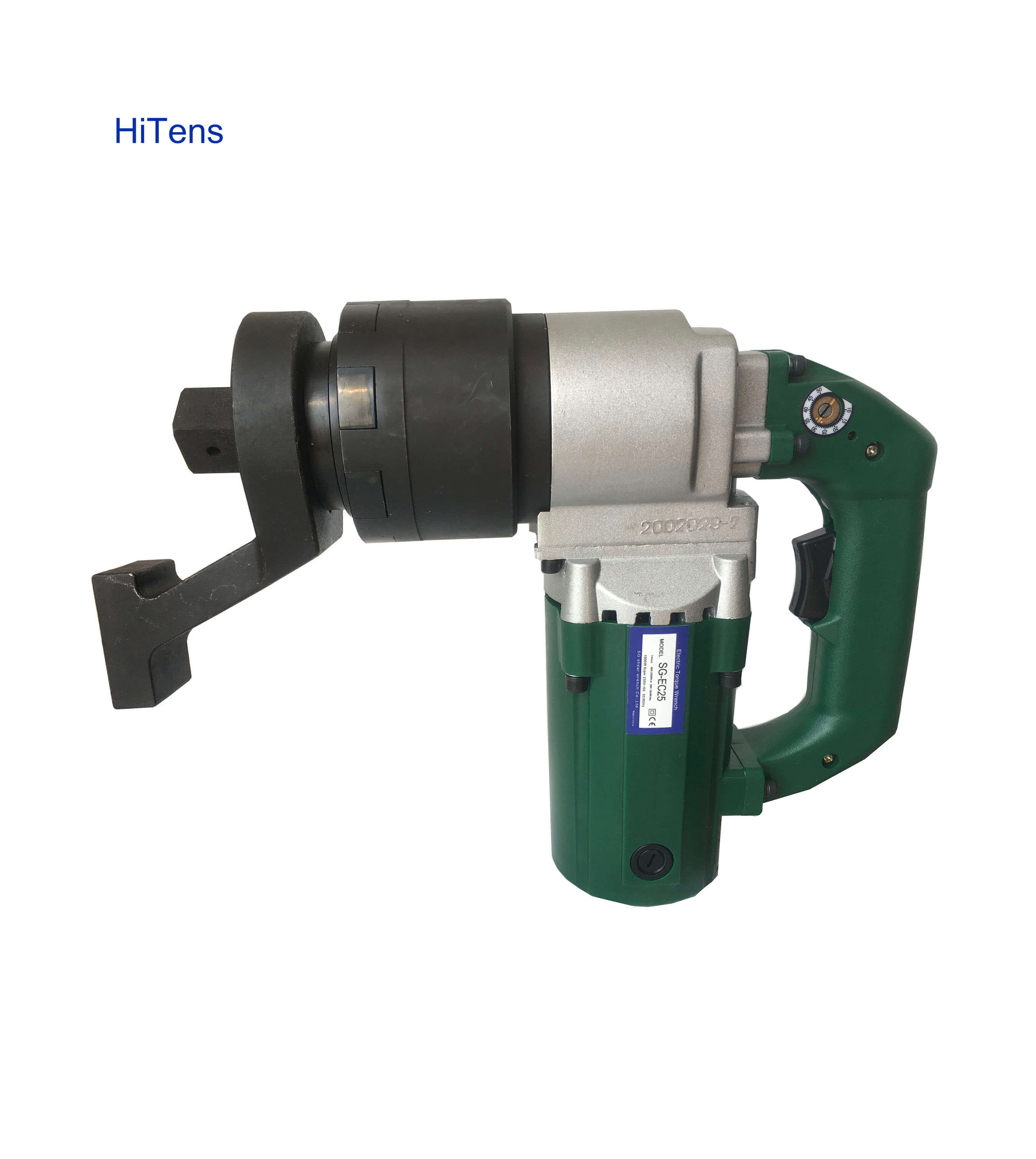

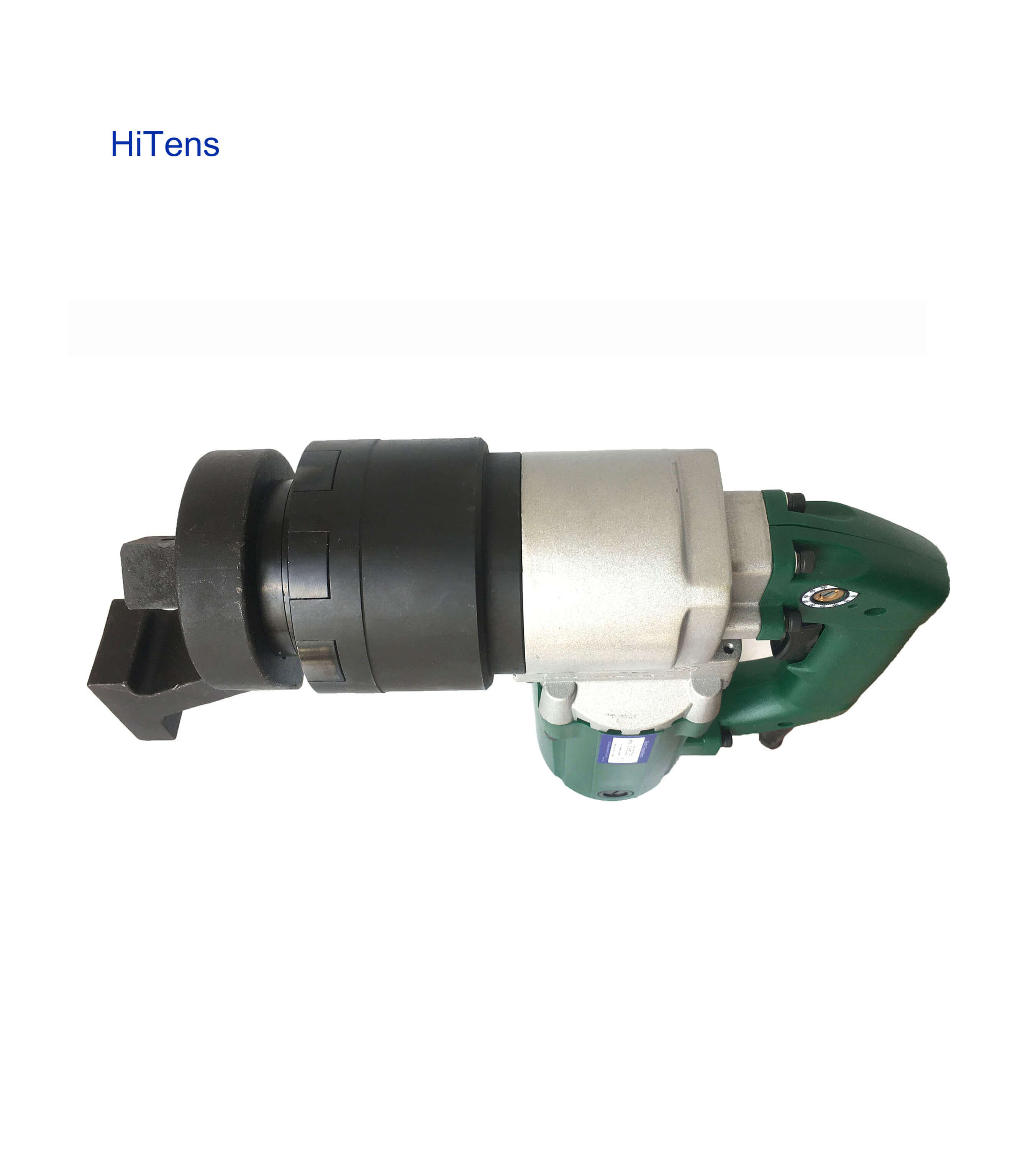

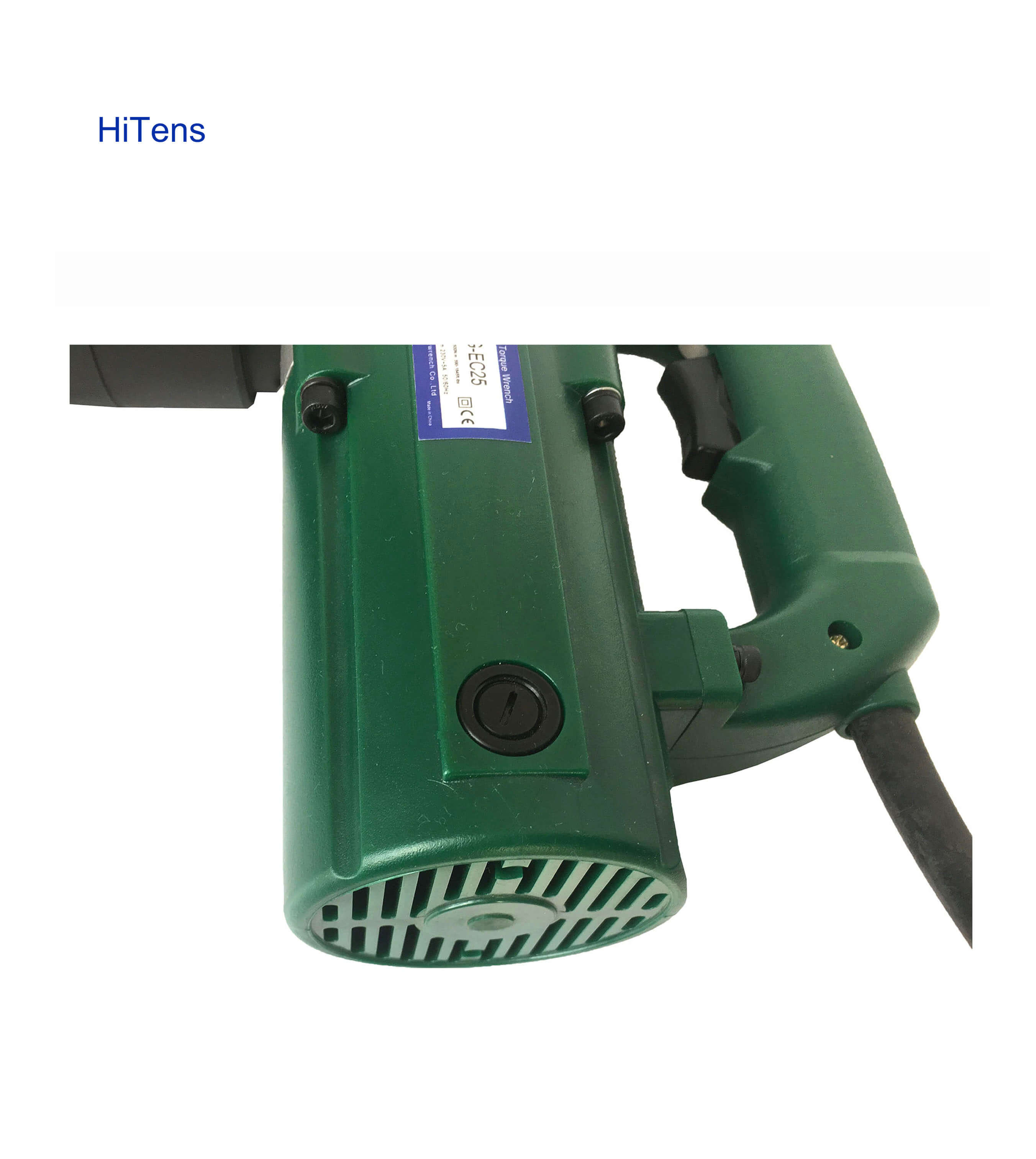

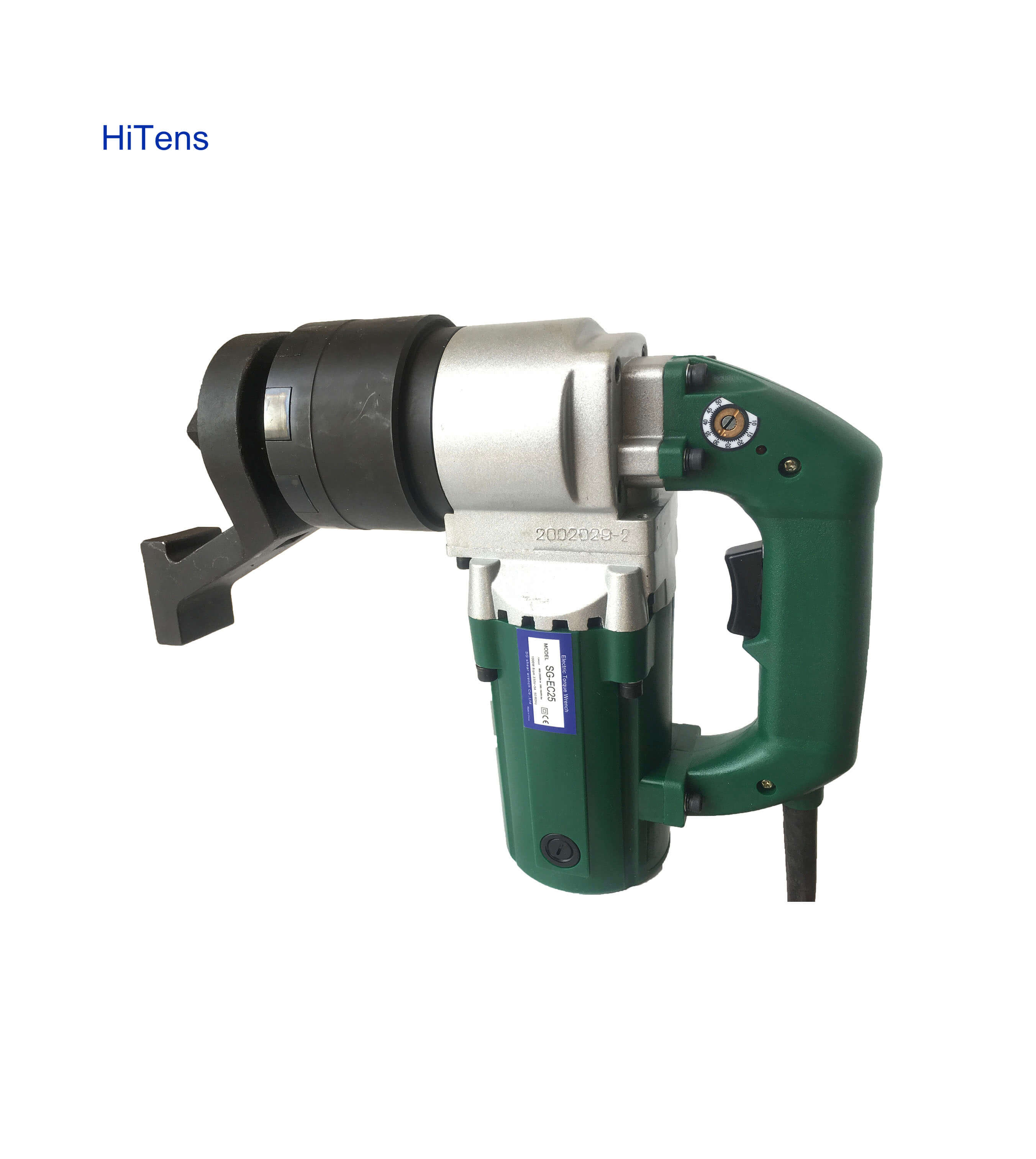

SG-EC25 electric torque wrench
Want to talk to a
specialist now?
specialist now?
+86-15550020331
Business Hours: 8am - 6pm Est
Description
| No | Item | Data |
| 1 | Power | Electricity |
| 2 | For | Hexagon bolt |
| 3 | Power consumption W | 1100 |
| 4 | Torque range | 800-2500N.m 590-1845ft.lbs |
| 5 | Ro Speed r/min | 8 |
| 6 | Applicate for | M27,M30 1-1/8″,1-1/4″ |

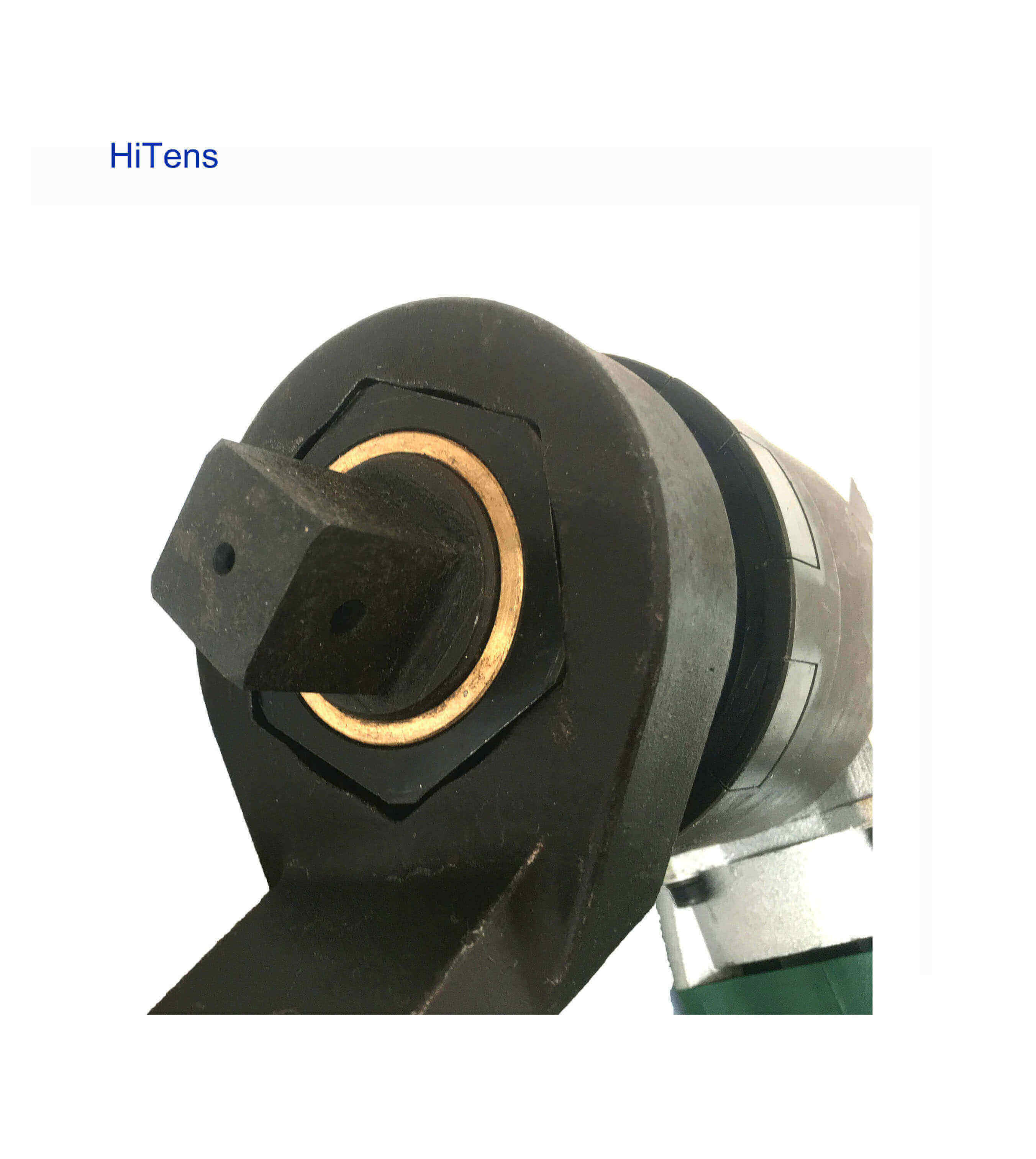

| 7 | Square drive | 1-1/4″ |
| 8 | Type | Non-impact |

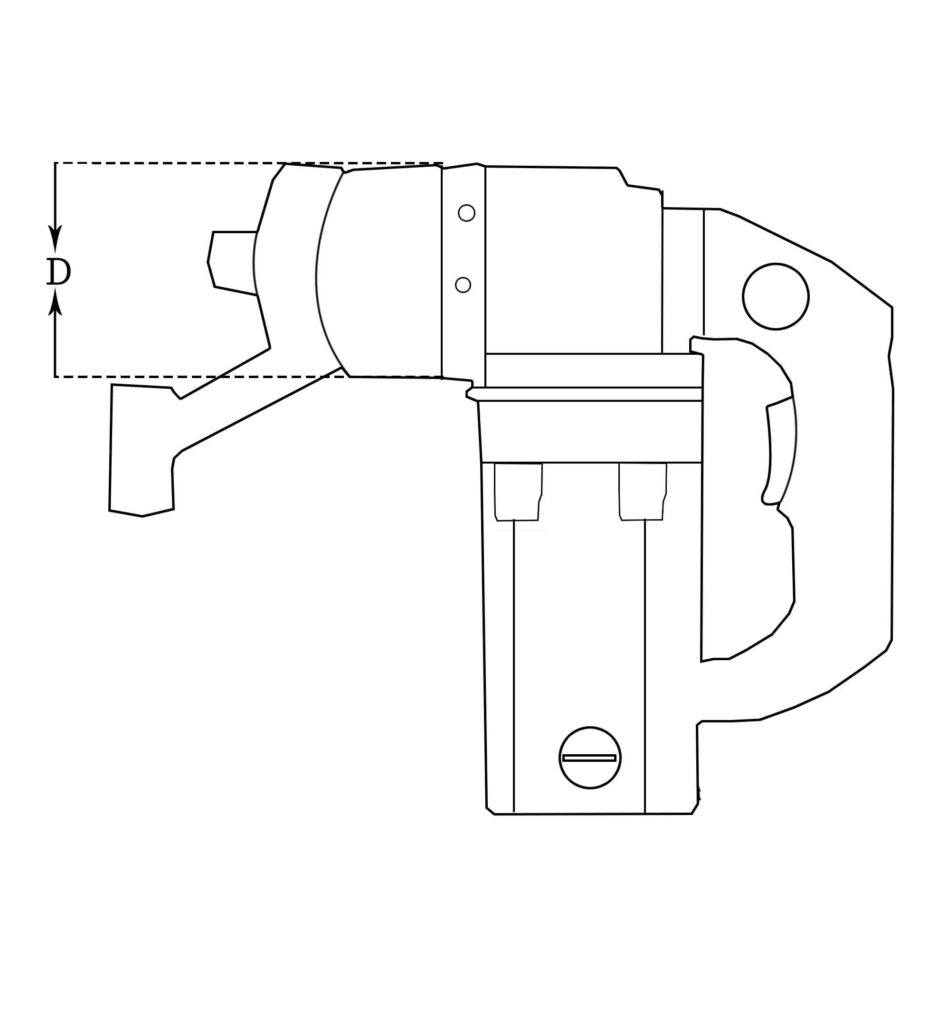

| 9 | Outer Diameter (D) mm | 100 |
| 10 | Weight kg | 18 |
What’s else of this type? Overview
| Model | Power consumption W | Currency A | Voltage V | Frequency | Ro Speed r/min | Torque | Applicate | Square Drive | Outer Diameter (D) mm | Weight kg |
| SG-EC10 | 1100 | 5 | 220 | 50-60HZ | 13r/min | 400-1000N.m 295-738ft.lbs | M22,M24 7/8″,1″ | 1″ | 89 | 14 |
| SG-EC15 | 1100 | 5 | 220 | 50-60HZ | 12r/min | 500-1500N.m 369-1107ft.lbs | M24,M27 1″,1-1/8″ | 1″ | 98 | 16 |
| SG-EC25 | 1100 | 5 | 220 | 50-60HZ | 8r/min | 800-2500N.m 590-1845ft.lbs | M27,M30 1-1/8″,1-1/4″ | 1-1/4″ | 100 | 18 |
| SG-EC35 | 1200 | 6 | 220 | 50-60HZ | 6r/min | 1700-3500N.m 1255-2583ft.lbs | M33,M36 1-3/8″,1-1/2″ | 1-1/2″ | 111 | 21 |
