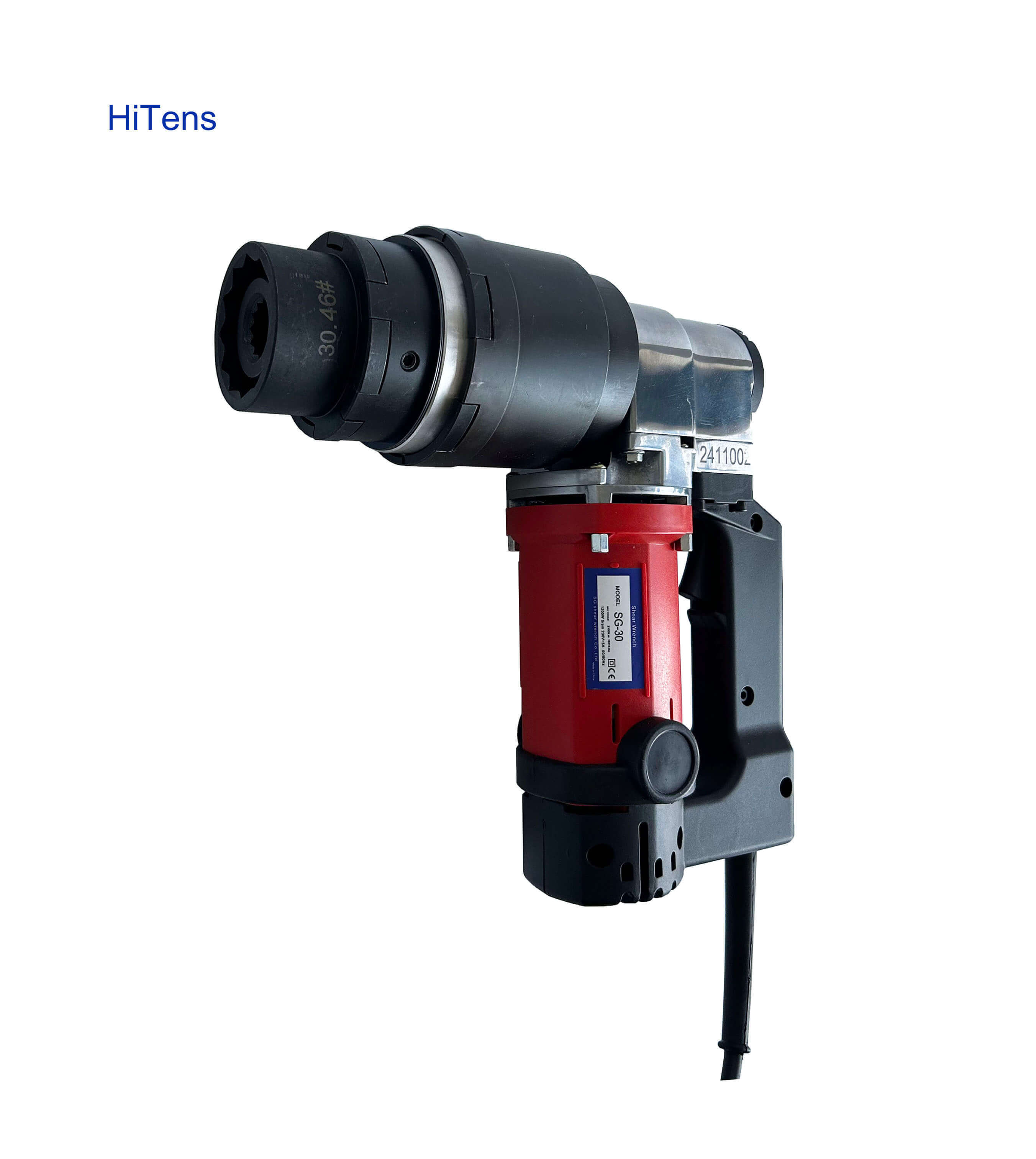

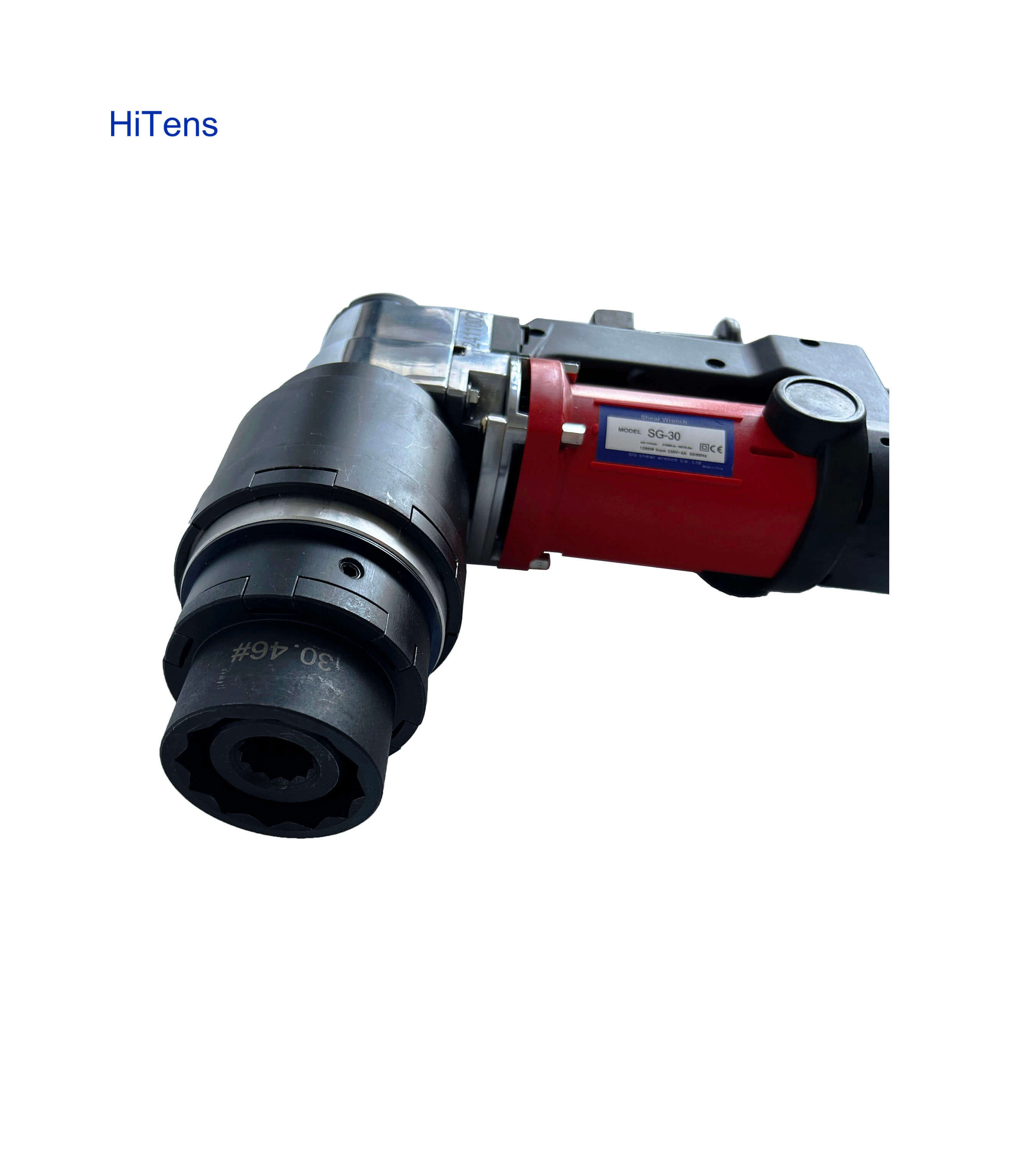

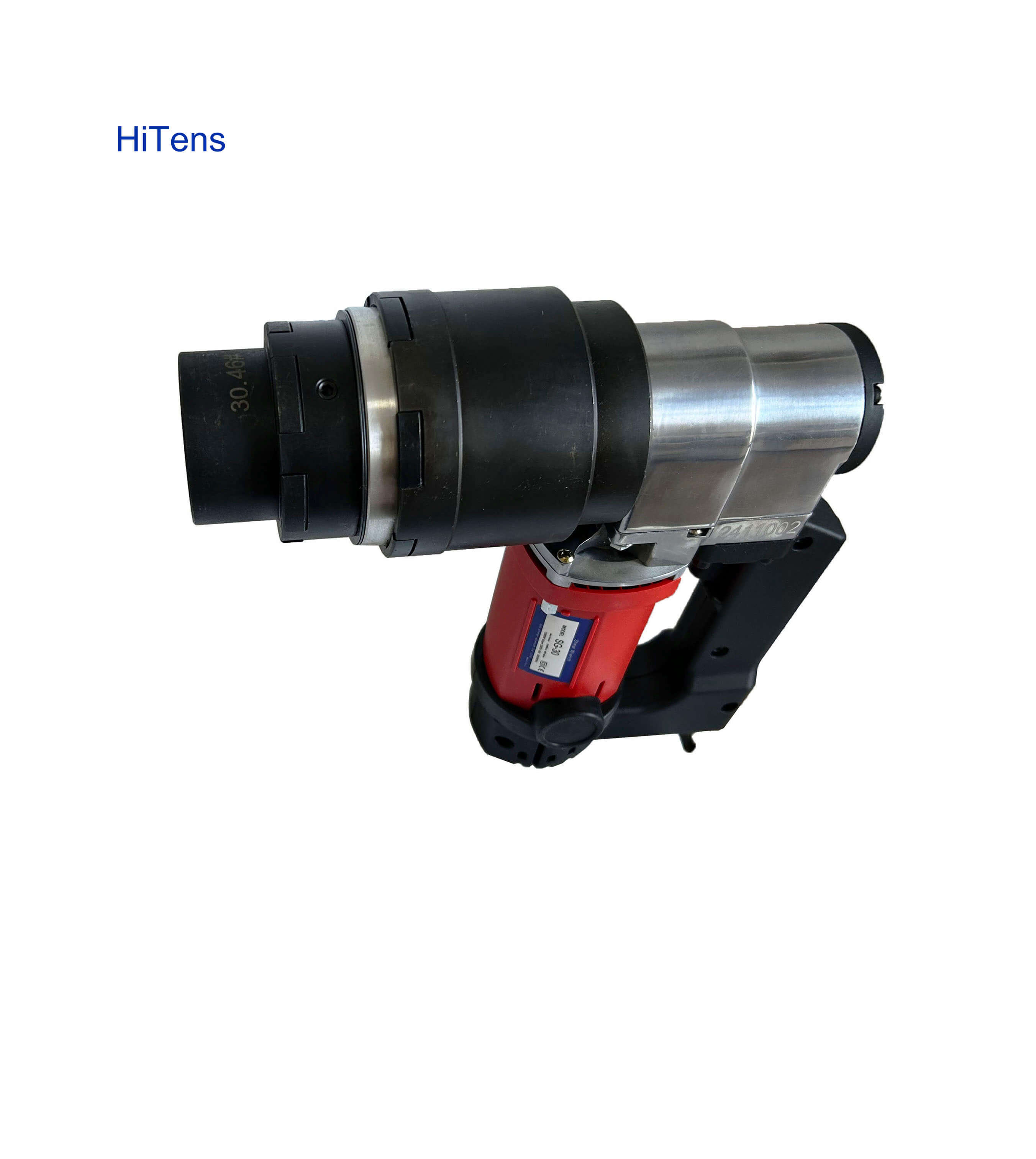

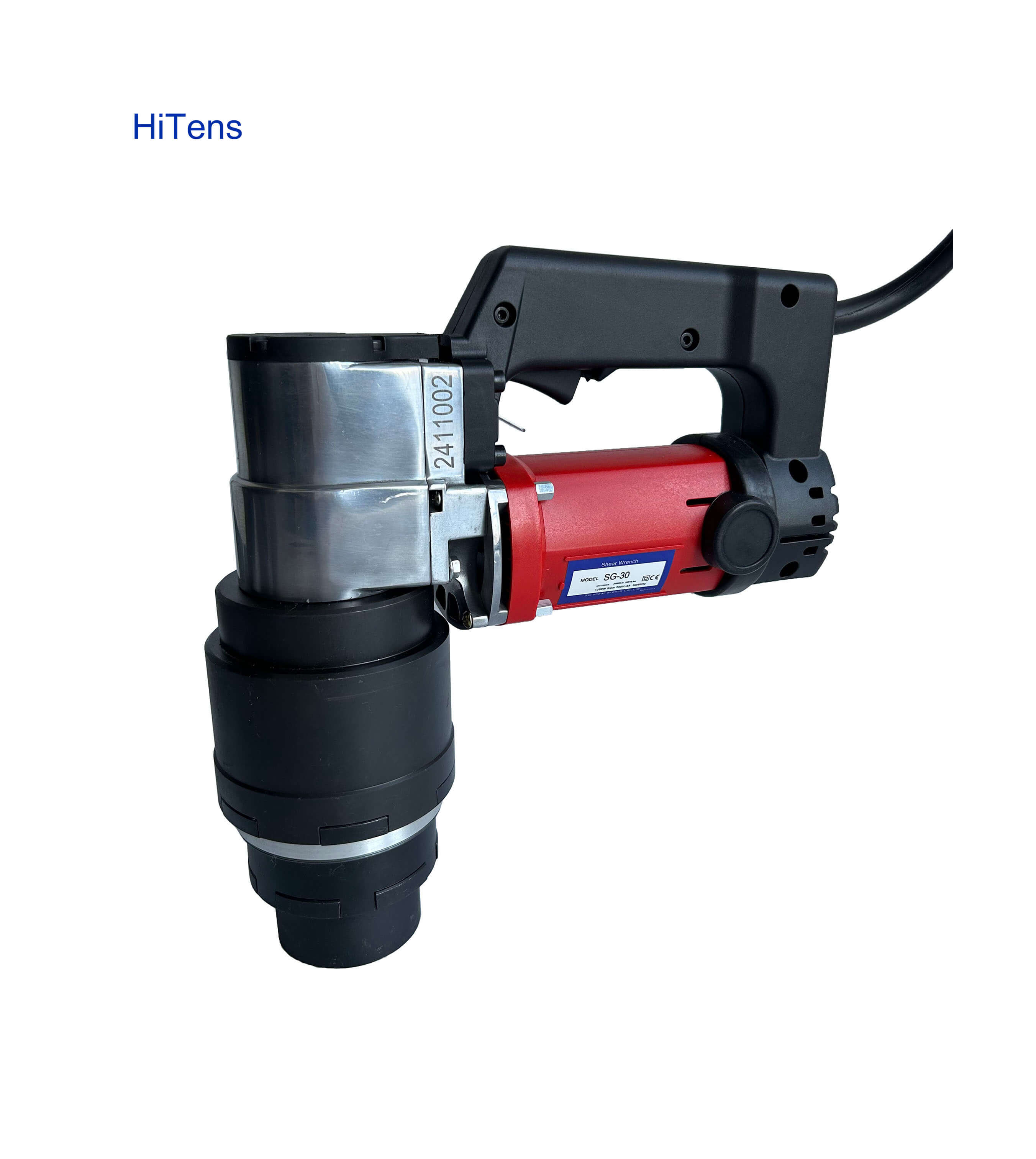

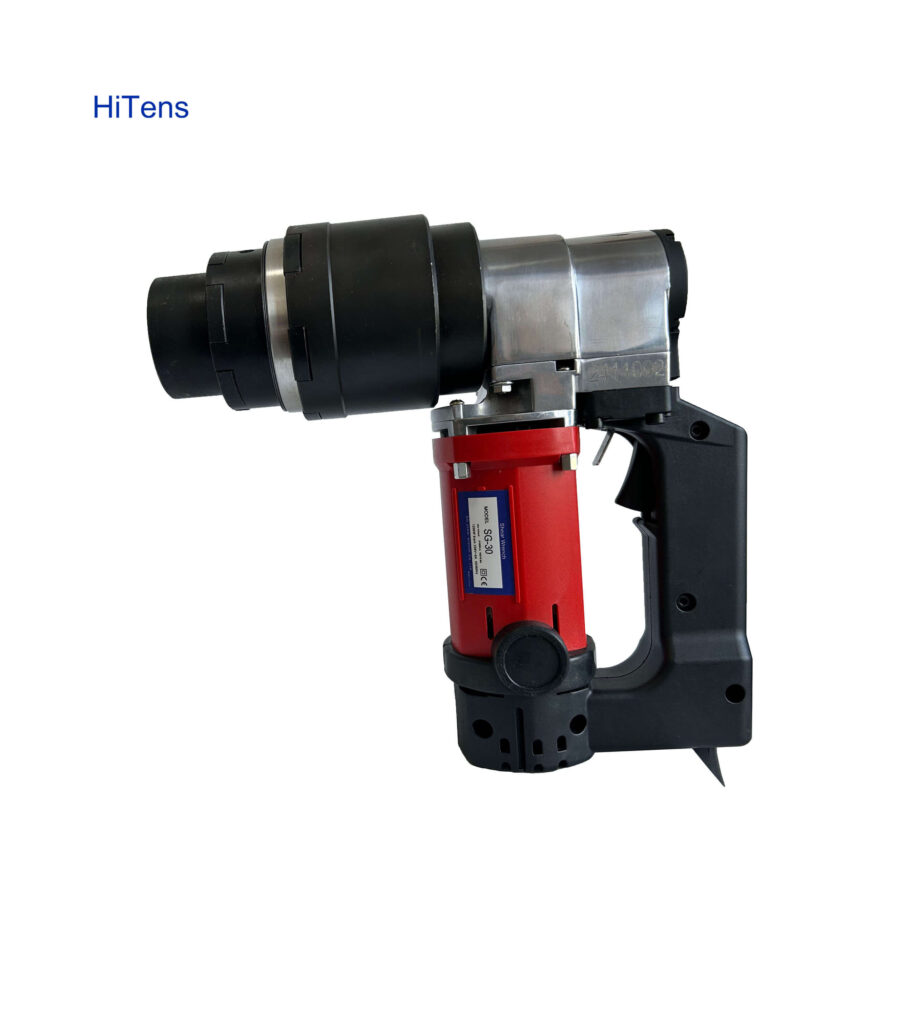

SG-30 shear wrench
Want to talk to a
specialist now?
specialist now?
+86-15550020331
Business Hours: 8am - 6pm Est
Description
| No | Item | Data |
| 1 | Power | Electricity |
| 2 | For | Tension control bolt |
| 3 | Power consumption W | 1350 |
| 4 | Max Torque | 2200N.m 1621ft.lbs |
| 5 | Ro Speed r/min | 6 |
| 6 | Applicate for | M27,M30 1-1/8″,1-1/4″ |
| 7 | Type | Non-impact |
| 8 | Outer Diameter (D) mm | 98 |
| 9 | Weight kg | 15 |
What’s else of this type? Overview
| Model | Power consumption W | Currency V | Voltage V | Frequency HZ | Ro Speed r/min | Max Torque | Applicate | Outer Diameter (D) mm | Weight kg |
| SG-22 | 1200 | 5 | 220 | 50-60 | 16 | 733N.m 540ft.lbs | M16,M20,M22 5/8″,3/4″,7/8″ | 78 | 8 |
| SG-24 | 1350 | 5 | 220 | 50-60 | 15 | 1180N.m 870ft.lbs | M16,M20,M22,M24 5/8″,1″ | 85 | 10 |
| SG-30 | 1350 | 5 | 220 | 50-60 | 6 | 2200N.m 1621ft.lbs | M27,M30 1-1/8″,1-1/4″ | 98 | 15 |
| SG-36 | 1500 | 7 | 220 | 50-60 | 3 | 3100N.m 2285ft.lbs | M33,M36 1-3/8″,1-1/2″ | 107 | 17 |
More about Tension Control Bolt
